[1]:
import numpy as np
import matplotlib
%matplotlib inline
import matplotlib.pyplot as plt
import py21cmfast as p21c
#import logging
#logger = logging.getLogger("21cmFAST")
#logger.setLevel(logging.INFO)
random_seed = 1993
EoR_colour = matplotlib.colors.LinearSegmentedColormap.from_list('mycmap',\
[(0, 'white'),(0.33, 'yellow'),(0.5, 'orange'),(0.68, 'red'),\
(0.83333, 'black'),(0.9, 'blue'),(1, 'cyan')])
plt.register_cmap(cmap=EoR_colour)
This result was obtained using 21cmFAST at commit 2bb4807c7ef1a41649188a3efc462084f2e3b2e0
Fiducial and lightcones¶
Let’s fix the initial condition for this tutorial.
[2]:
output_dir = '/home/yqin/aida/hybrid/mini-halos/'
HII_DIM = 128
BOX_LEN = 250
# USE_FFTW_WISDOM make FFT faster
user_params = {"HII_DIM":HII_DIM, "BOX_LEN": BOX_LEN, "USE_FFTW_WISDOM": True}
initial_conditions = p21c.initial_conditions(user_params=user_params,random_seed=random_seed, direc=output_dir)

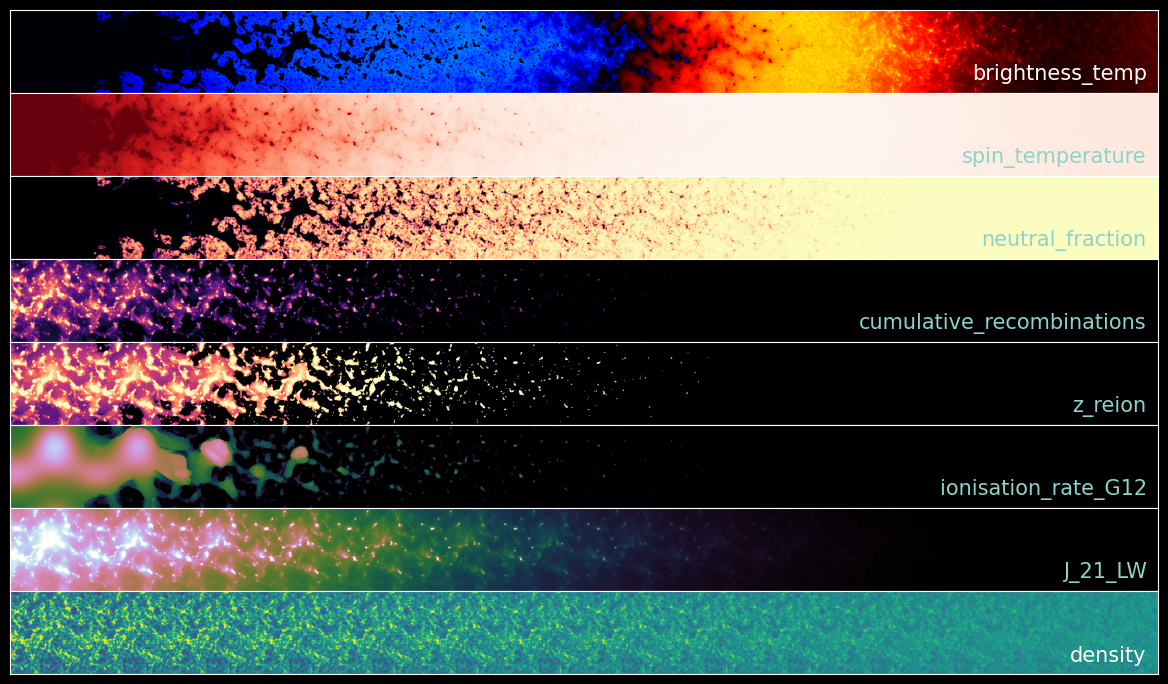

Let’s run a ‘fiducial’ model and see its lightcones
Note that the reference model has
pow(10, "F_STAR7_MINI") = pow(10, "F_STAR10") / pow(1000,ALPHA_STAR) * 10 # 10 times enhancement
pow(10, "F_ESC7_MINI" ) = pow(10, "F_ESC10" ) / pow(1000,ALPHA_ESC ) / 10 # 0.1 times enhancement to balance the 10 times enhanced Ngamma
pow(10, "L_X_MINI" ) = pow(10, "L_X")
1 - "F_H2_SHIELD" = 1
[3]:
# the lightcones we want to plot later together with their color maps and min/max
lightcone_quantities = ('brightness_temp','Ts_box','xH_box',"dNrec_box",'z_re_box','Gamma12_box','J_21_LW_box',"density")
cmaps = [EoR_colour,'Reds','magma','magma','magma','cubehelix','cubehelix','viridis']
vmins = [-150, 1e1, 0, 0, 5, 0, 0, -1]
vmaxs = [ 30, 1e3, 1, 2, 9, 1,10, 1]
# set necessary flags for using minihalos and astro parameter
astro_params_fid = {'ALPHA_ESC': 0.0, 'F_ESC10': -1.222, 'F_ESC7_MINI' : -2.222,
'ALPHA_STAR': 0.5,'F_STAR10': -1.25, 'F_STAR7_MINI': -1.75,
'L_X': 40.5, 'L_X_MINI': 40.5, 'NU_X_THRESH': 500.0, 'F_H2_SHIELD': 0.0}
flag_options_fid = {"INHOMO_RECO":True, 'USE_MASS_DEPENDENT_ZETA':True, 'USE_TS_FLUCT':True, 'USE_MINI_HALOS':True}
lightcone_fid = p21c.run_lightcone(
redshift = 5.5,
init_box = initial_conditions,
flag_options = flag_options_fid,
astro_params = astro_params_fid,
lightcone_quantities=lightcone_quantities,
global_quantities=lightcone_quantities,
random_seed = random_seed,
direc = output_dir
)
fig, axs = plt.subplots(len(lightcone_quantities),1,
figsize=(getattr(lightcone_fid, lightcone_quantities[0]).shape[2]*0.01,
getattr(lightcone_fid, lightcone_quantities[0]).shape[1]*0.01*len(lightcone_quantities)))
for ii, lightcone_quantity in enumerate(lightcone_quantities):
axs[ii].imshow(getattr(lightcone_fid, lightcone_quantity)[1],
vmin=vmins[ii], vmax=vmaxs[ii],cmap=cmaps[ii])
axs[ii].text(1, 0.05, lightcone_quantity,horizontalalignment='right',verticalalignment='bottom',
transform=axs[ii].transAxes,color = 'red',backgroundcolor='white',fontsize = 15)
axs[ii].xaxis.set_tick_params(labelsize=0)
axs[ii].yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace = 0.01)
# varying parameters
let’s vary paremeters that describe mini-halos and see the impact to the global signal
We keep other parameters fixed and vary one of following by a factor of 0.1, 0.5, 2 and 10:
pow(10, "F_STAR7_MINI")
pow(10, "F_ESC7_MINI")
pow(10, "L_X_MINI")
1 - "F_H2_SHIELD"
We also have a NOmini model where mini-halos are not included
[8]:
#defining those color, linstyle, blabla
linestyles = ['-', '-',':','-.','-.',':']
colors = ['gray','black','#e41a1c','#377eb8','#e41a1c','#377eb8']
lws = [1,3,2,2,2,2]
textss = ['varying '+r'$f_{*,7}^{\rm mol}$',\
'varying '+r'$f_{\rm esc}^{\rm mol}$',\
'varying '+r'$L_{\rm x}^{\rm mol}$',\
'varying '+r'$1-f_{\rm H_2}^{\rm shield}$']
factorss = [[0, 1, 0.1, 0.5, 2, 10],] * len(textss)
labelss = [['NOmini', 'reference', 'x0.1', 'x0.5', 'x2', 'x10'],] * len(textss)
Note that I’ve run these simulations in parallel before this tutorial. With these setup, each took ~6h to finish. Here, running means read the cached outputs.
global properties¶
[86]:
global_quantities = ('brightness_temp','Ts_box','xH_box',"dNrec_box",'z_re_box','Gamma12_box','J_21_LW_box',"density")
#choose some to plot...
plot_quantities = ('brightness_temp','Ts_box','xH_box',"dNrec_box",'Gamma12_box','J_21_LW_box')
ymins = [-120, 1e1, 0, 0, 0, 0]
ymaxs = [ 30, 1e3, 1, 1, 1,10]
fig, axss = plt.subplots(len(plot_quantities), len(labelss),
sharex=True, figsize=(4*len(labelss),2*len(global_quantities)))
for pp, texts in enumerate(textss):
labels = labelss[pp]
factors = factorss[pp]
axs = axss[:,pp]
for kk, label in enumerate(labels):
flag_options = flag_options_fid.copy()
astro_params = astro_params_fid.copy()
factor = factors[kk]
if label == 'NOmini':
flag_options.update({'USE_MINI_HALOS': False})
else:
flag_options.update({'USE_MINI_HALOS': True})
if pp == 0:
astro_params.update({'F_STAR7_MINI': astro_params_fid['F_STAR7_MINI']+np.log10(factor)})
elif pp == 1:
astro_params.update({'F_ESC7_MINI': astro_params_fid['F_ESC7_MINI']+np.log10(factor)})
elif pp == 2:
astro_params.update({'L_X_MINI': astro_params_fid['L_X_MINI']+np.log10(factor)})
else:
if factor > 1: continue # can't do negative F_H2_SHIELD
astro_params.update({'F_H2_SHIELD': 1. - (1. - astro_params_fid['F_H2_SHIELD']) * factor})
if label == 'reference':
lightcone = lightcone_fid
else:
lightcone = p21c.run_lightcone(
redshift = 5.5,
init_box = initial_conditions,
flag_options = flag_options,
astro_params = astro_params,
global_quantities=global_quantities,
random_seed = random_seed,
direc = output_dir
)
freqs = 1420.4 / (np.array(lightcone.node_redshifts) + 1.)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].plot(freqs, getattr(lightcone, 'global_%s'%global_quantity.replace('_box','')),
color=colors[kk],linestyle=linestyles[kk], label = labels[kk],lw=lws[kk])
axs[0].text(0.01, 0.99, texts,horizontalalignment='left',verticalalignment='top',
transform=axs[0].transAxes,fontsize = 15)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylim(ymins[jj], ymaxs[jj])
axs[-1].set_xlabel('Frequency/MHz',fontsize=15)
axs[-1].xaxis.set_tick_params(labelsize=15)
axs[0].set_xlim(1420.4 / (35 + 1.), 1420.4 / (5.5 + 1.))
zlabels = np.array([ 6, 7, 8, 10, 13, 18, 25, 35])
ax2 = axs[0].twiny()
ax2.set_xlim(axs[0].get_xlim())
ax2.set_xticks(1420.4 / (zlabels + 1.))
ax2.set_xticklabels(zlabels.astype(np.str))
ax2.set_xlabel("redshift",fontsize=15)
ax2.xaxis.set_tick_params(labelsize=15)
ax2.grid(False)
if pp == 0:
axs[0].legend(loc='lower right', ncol=2,fontsize=13,fancybox=True,frameon=True)
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylabel('global_%s'%global_quantity.replace('_box',''),fontsize=15)
axs[jj].yaxis.set_tick_params(labelsize=15)
else:
for jj, global_quantity in enumerate(plot_quantities):
axs[jj].set_ylabel('global_%s'%global_quantity.replace('_box',''),fontsize=0)
axs[jj].yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)
[86]:
21-cm power spectra¶
[87]:
# define functions to calculate PS, following py21cmmc
from powerbox.tools import get_power
def compute_power(
box,
length,
n_psbins,
log_bins=True,
ignore_kperp_zero=True,
ignore_kpar_zero=False,
ignore_k_zero=False,
):
# Determine the weighting function required from ignoring k's.
k_weights = np.ones(box.shape, dtype=np.int)
n0 = k_weights.shape[0]
n1 = k_weights.shape[-1]
if ignore_kperp_zero:
k_weights[n0 // 2, n0 // 2, :] = 0
if ignore_kpar_zero:
k_weights[:, :, n1 // 2] = 0
if ignore_k_zero:
k_weights[n0 // 2, n0 // 2, n1 // 2] = 0
res = get_power(
box,
boxlength=length,
bins=n_psbins,
bin_ave=False,
get_variance=False,
log_bins=log_bins,
k_weights=k_weights,
)
res = list(res)
k = res[1]
if log_bins:
k = np.exp((np.log(k[1:]) + np.log(k[:-1])) / 2)
else:
k = (k[1:] + k[:-1]) / 2
res[1] = k
return res
def powerspectra(brightness_temp, n_psbins=50, nchunks=10, min_k=0.1, max_k=1.0, logk=True):
data = []
chunk_indices = list(range(0,brightness_temp.n_slices,round(brightness_temp.n_slices / nchunks),))
if len(chunk_indices) > nchunks:
chunk_indices = chunk_indices[:-1]
chunk_indices.append(brightness_temp.n_slices)
for i in range(nchunks):
start = chunk_indices[i]
end = chunk_indices[i + 1]
chunklen = (end - start) * brightness_temp.cell_size
power, k = compute_power(
brightness_temp.brightness_temp[:, :, start:end],
(BOX_LEN, BOX_LEN, chunklen),
n_psbins,
log_bins=logk,
)
data.append({"k": k, "delta": power * k ** 3 / (2 * np.pi ** 2)})
return data

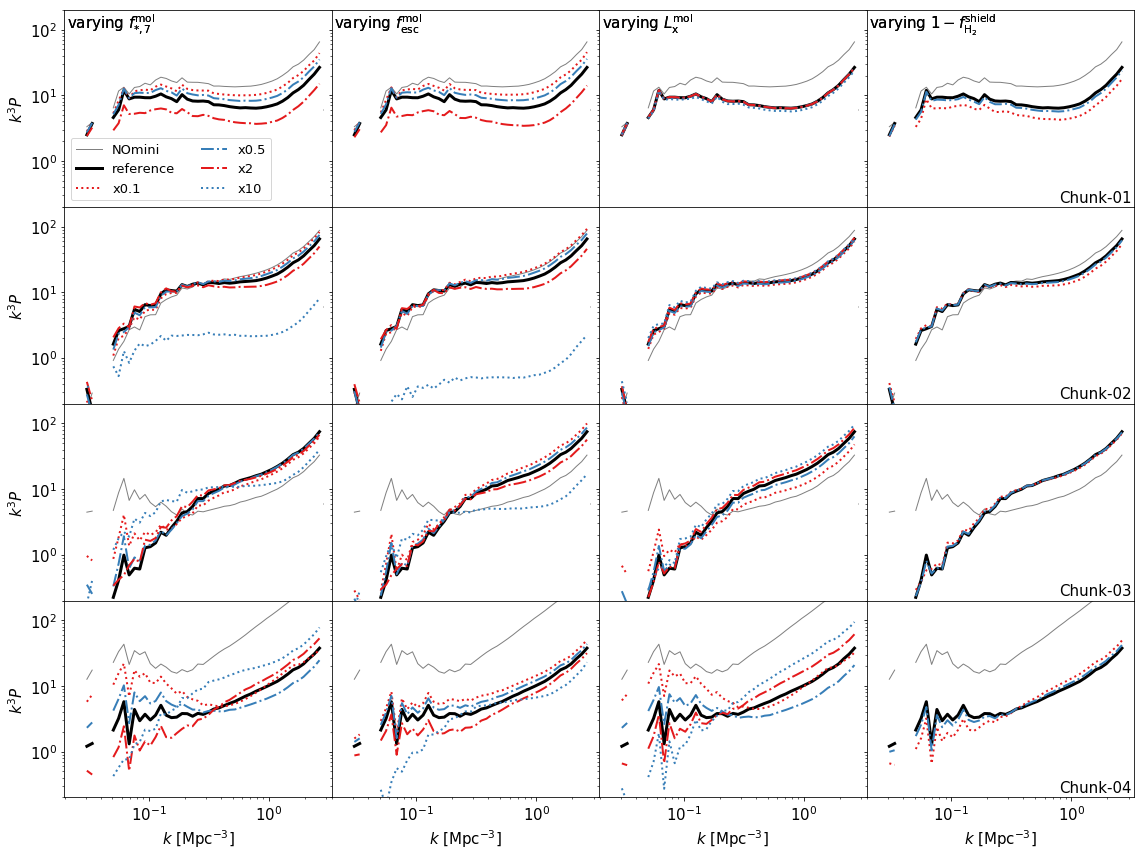

[96]:
# do 5 chunks but only plot 1 - 4, the 0th has no power for minihalo models where xH=0
nchunks = 4
fig, axss = plt.subplots(nchunks, len(labelss), sharex=True,sharey=True,figsize=(4*len(labelss),3*(nchunks)),subplot_kw={"xscale":'log', "yscale":'log'})
for pp, texts in enumerate(textss):
labels = labelss[pp]
factors = factorss[pp]
axs = axss[:,pp]
for kk, label in enumerate(labels):
flag_options = flag_options_fid.copy()
astro_params = astro_params_fid.copy()
factor = factors[kk]
if label == 'NOmini':
flag_options.update({'USE_MINI_HALOS': False})
else:
flag_options.update({'USE_MINI_HALOS': True})
if pp == 0:
astro_params.update({'F_STAR7_MINI': astro_params_fid['F_STAR7_MINI']+np.log10(factor)})
elif pp == 1:
astro_params.update({'F_ESC7_MINI': astro_params_fid['F_ESC7_MINI']+np.log10(factor)})
elif pp == 2:
astro_params.update({'L_X_MINI': astro_params_fid['L_X_MINI']+np.log10(factor)})
else:
if factor > 1: continue # can't do negative F_H2_SHIELD
astro_params.update({'F_H2_SHIELD': 1. - (1. - astro_params_fid['F_H2_SHIELD']) * factor})
if label == 'reference':
lightcone = lightcone_fid
else:
lightcone = p21c.run_lightcone(
redshift = 5.5,
init_box = initial_conditions,
flag_options = flag_options,
astro_params = astro_params,
global_quantities=global_quantities,
random_seed = random_seed,
direc = output_dir
)
PS = powerspectra(lightcone)
for ii in range(nchunks):
axs[ii].plot(PS[ii+1]['k'], PS[ii+1]['delta'], color=colors[kk],linestyle=linestyles[kk], label = labels[kk],lw=lws[kk])
if pp == len(textss)-1 and kk == 0:
axs[ii].text(0.99, 0.01, 'Chunk-%02d'%(ii+1),horizontalalignment='right',verticalalignment='bottom',
transform=axs[ii].transAxes,fontsize = 15)
axs[0].text(0.01, 0.99, texts,horizontalalignment='left',verticalalignment='top',
transform=axs[0].transAxes,fontsize = 15)
axs[-1].set_xlabel("$k$ [Mpc$^{-3}$]",fontsize=15)
axs[-1].xaxis.set_tick_params(labelsize=15)
if pp == 0:
for ii in range(nchunks):
axs[ii].set_ylim(2e-1, 2e2)
axs[ii].set_ylabel("$k^3 P$", fontsize=15)
axs[ii].yaxis.set_tick_params(labelsize=15)
else:
for ii in range(nchunks-1):
axs[ii].set_ylim(2e-1, 2e2)
axs[ii].set_ylabel("$k^3 P$", fontsize=0)
axs[ii].yaxis.set_tick_params(labelsize=0)
axss[0,0].legend(loc='lower left', ncol=2,fontsize=13,fancybox=True,frameon=True)
plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)
[96]:
Now you know how minihalo can shape the 21-cm signal!
[ ]:
