import numpy as np
import matplotlib
%matplotlib inline
import matplotlib.pyplot as plt
import py21cmfast as p21c

from py21cmfast import global_params
from py21cmfast import plotting



random_seed = 1605

EoR_colour = matplotlib.colors.LinearSegmentedColormap.from_list('mycmap',\
             [(0, 'white'),(0.33, 'yellow'),(0.5, 'orange'),(0.68, 'red'),\
              (0.83333, 'black'),(0.9, 'blue'),(1, 'cyan')])
plt.register_cmap(cmap=EoR_colour)

This result was obtained using 21cmFAST at commit 2bb4807c7ef1a41649188a3efc462084f2e3b2e0

Fiducial and lightcones

Let’s fix the initial condition for this tutorial.

[2]:
output_dir = '/Users/julian/Dropbox/Research/21/Mturn_21cmFASTv3/outputcode/'

HII_DIM = 64
BOX_LEN = 200 #cell size of ~3 Mpc or below for relative velocities

# USE_FFTW_WISDOM make FFT faster AND use relative velocities. , 'USE_INTERPOLATION_TABLES': True or code is too slow
user_params = {"HII_DIM":HII_DIM, "BOX_LEN": BOX_LEN, "USE_FFTW_WISDOM": True, 'USE_INTERPOLATION_TABLES': True,
               "FAST_FCOLL_TABLES": True,
               "USE_RELATIVE_VELOCITIES": True, "POWER_SPECTRUM": 5}

#set FAST_FCOLL_TABLES to TRUE if using minihaloes, it speeds up the generation of tables by ~x30 (see Appendix X of XXX JBM)
#USE_RELATIVE_VELOCITIES is important for minihaloes. If True, POWER_SPECTRUM has to be set to 5 (CLASS) to get the transfers.



initial_conditions = p21c.initial_conditions(user_params=user_params,
                                             random_seed=random_seed,
                                             direc=output_dir
                                             #, regenerate=True
                                            )


[3]:

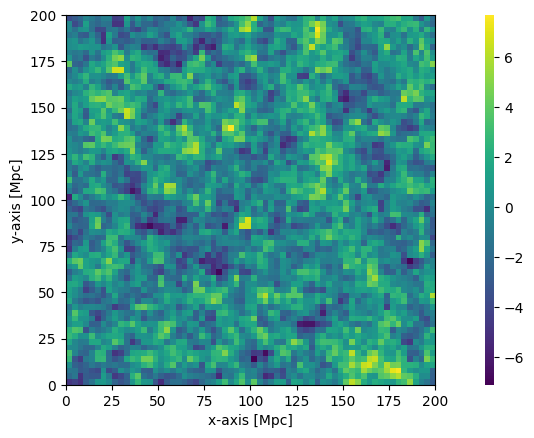

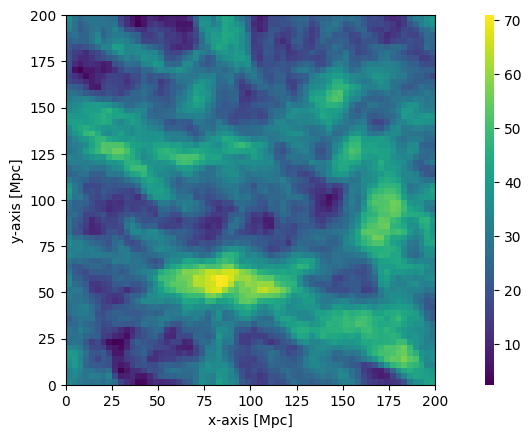

plotting.coeval_sliceplot(initial_conditions, "lowres_vcb");
plotting.coeval_sliceplot(initial_conditions, "lowres_density");
../_images/tutorials_relative_velocities_5_0.png
../_images/tutorials_relative_velocities_5_1.png

Let’s run a ‘fiducial’ model and see its lightcones

Note that the reference model has

F_STAR7_MINI ~ F_STAR10
and
F_ESC7_MINI ~ 1%, as low, but conservative fiducial
Also we take L_X_MINI=L_X out of simplicity (and ignorance)
[4]:
# the lightcones we want to plot later together with their color maps and min/max
lightcone_quantities = ('brightness_temp','Ts_box','xH_box',"dNrec_box",'z_re_box','Gamma12_box','J_21_LW_box',"density")
cmaps = [EoR_colour,'Reds','magma','magma','magma','cubehelix','cubehelix','viridis']
vmins = [-150, 1e1, 0, 0, 5, 0, 0, -1]
vmaxs = [  30, 1e3, 1, 2, 9, 1,10,  1]




astro_params_vcb = {'ALPHA_ESC': -0.3, 'F_ESC10': -1.2,
                    'ALPHA_STAR': 0.5, 'F_STAR10': -1.5, 't_STAR' :0.5,
                    'F_STAR7_MINI': -1.75, 'ALPHA_STAR_MINI': 0.0, 'F_ESC7_MINI' : -2.25,
                    'L_X': 40.5, 'L_X_MINI': 40.5, 'NU_X_THRESH': 200.0,
                    'A_VCB': 1.0, 'A_LW': 2.0}


astro_params_novcb=astro_params_vcb
astro_params_novcb.update({'A_VCB': 0.0})
#setting 'A_VCB': 0 sets to zero the effect of relative velocities (fiducial value is 1.0)
#the parameter 'A_LW' (with fid value of 2.0) does the same for LW feedback.


flag_options_fid = {"INHOMO_RECO":True, 'USE_MASS_DEPENDENT_ZETA':True, 'USE_TS_FLUCT':True,
                    'USE_MINI_HALOS':True, 'FIX_VCB_AVG':False}


flag_options_fid_vavg = flag_options_fid
flag_options_fid_vavg.update({'FIX_VCB_AVG': True})
#the flag FIX_VCB_AVG side-steps the relative-velocity ICs, and instead fixes all velocities to some average value.
#It gets the background right but it's missing VAOs and 21cm power at large scales
[ ]:
ZMIN=5.5

lightcone_fid_vcb = p21c.run_lightcone(
        redshift = ZMIN,
        init_box = initial_conditions,
        flag_options = flag_options_fid,
        astro_params = astro_params_vcb,
        lightcone_quantities=lightcone_quantities,
        global_quantities=lightcone_quantities,
        random_seed = random_seed,
        direc = output_dir,
        write=True#, regenerate=True
)




fig, axs = plt.subplots(len(lightcone_quantities),1,
            figsize=(20,10))#(getattr(lightcone_fid_vcb, lightcone_quantities[0]).shape[2]*0.01,
                     #getattr(lightcone_fid_vcb, lightcone_quantities[0]).shape[1]*0.01*len(lightcone_quantities)))
for ii, lightcone_quantity in enumerate(lightcone_quantities):
    axs[ii].imshow(getattr(lightcone_fid_vcb, lightcone_quantity)[1],
                   vmin=vmins[ii], vmax=vmaxs[ii],cmap=cmaps[ii])
    axs[ii].text(1, 0.05, lightcone_quantity,horizontalalignment='right',verticalalignment='bottom',
            transform=axs[ii].transAxes,color = 'red',backgroundcolor='white',fontsize = 15)
    axs[ii].xaxis.set_tick_params(labelsize=10)
    axs[ii].yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace = 0.01)
[ ]:
#also run one without velocities and with fixed vcb=vavg (for comparison)

lightcone_fid_novcb = p21c.run_lightcone(
        redshift = ZMIN,
        init_box = initial_conditions,
        flag_options = flag_options_fid,
        astro_params = astro_params_novcb,
        lightcone_quantities=lightcone_quantities,
        global_quantities=lightcone_quantities,
        random_seed = random_seed,
        direc = output_dir,
        write=True#, regenerate=True
)

lightcone_fid_vcbavg = p21c.run_lightcone(
        redshift = ZMIN,
        init_box = initial_conditions,
        flag_options = flag_options_fid_vavg,
        astro_params = astro_params_vcb,
        lightcone_quantities=lightcone_quantities,
        global_quantities=lightcone_quantities,
        random_seed = random_seed,
        direc = output_dir,
        write=True#, regenerate=True
)


[ ]:

[ ]:
#plus run one with only atomic-cooling galaxies but same otherwise

flag_options_NOMINI=flag_options_fid
flag_options_NOMINI.update({'USE_MINI_HALOS': False})

lightcone_fid_NOMINI = p21c.run_lightcone(
        redshift = ZMIN,
        init_box = initial_conditions,
        flag_options = flag_options_NOMINI,
        astro_params = astro_params_vcb,
        lightcone_quantities=lightcone_quantities,
        global_quantities=lightcone_quantities,
        random_seed = random_seed,
        direc = output_dir,
        write=True#, regenerate=True
)
[ ]:
#compare vcb and novcb

fig, axs = plt.subplots(2 ,1,
            figsize=(20,6))

axs[0].imshow(getattr(lightcone_fid_vcb, 'brightness_temp')[1],
               vmin=vmins[0], vmax=vmaxs[0],cmap=cmaps[0])
axs[1].imshow(getattr(lightcone_fid_novcb, 'brightness_temp')[1],
               vmin=vmins[0], vmax=vmaxs[0],cmap=cmaps[0])
axs[0].text(1, 0.05, 'vcb' ,horizontalalignment='right',verticalalignment='bottom',
        transform=axs[0].transAxes,color = 'red',backgroundcolor='white',fontsize = 15)
axs[1].text(1, 0.05, 'novcb' ,horizontalalignment='right',verticalalignment='bottom',
        transform=axs[1].transAxes,color = 'red',backgroundcolor='white',fontsize = 15)
# axs[0].xaxis.set_tick_params(labelsize=10)
# axs[1].yaxis.set_tick_params(labelsize=0)
plt.tight_layout()
fig.subplots_adjust(hspace = 0.01)
[ ]:
#plot tau

tau_vcb=tau_novcb=tau_NOMINI=np.array([])
for il,lightcone in enumerate([lightcone_fid_vcb,lightcone_fid_novcb,lightcone_fid_NOMINI]):
    z_e=np.array([]);
    tau_e=np.array([]);
    for i in range(len(lightcone.node_redshifts)-1):
        tauz=p21c.compute_tau(redshifts=lightcone.node_redshifts[-1:-2-i:-1],
                             global_xHI=lightcone.global_xHI[-1:-2-i:-1])
        tau_e=np.append(tau_e,tauz)
        z_e=np.append(z_e,lightcone.node_redshifts[-2-i])

    #add lower zs where we manually set xH=1
    zlow=np.linspace(lightcone.node_redshifts[-1]-0.1, 0.1, 14)
    for zl in zlow:
        tauz=p21c.compute_tau(redshifts=np.array([zl]), global_xHI=np.array([lightcone.global_xHI[-1]]))
        tau_e=np.append([tauz],tau_e)
        z_e=np.append([zl],z_e)

    if(il==0):
        tau_vcb=tau_e
    elif (il==1):
        tau_novcb=tau_e
    else:
        tau_NOMINI=tau_e





linestyles = ['-', '-.',':']
colors     = ['black','gray','#377eb8']
lws        = [3,1,2]

fig, axs = plt.subplots(1, 1, sharex=True, figsize=(8,4))

kk=0
axs.plot(z_e, tau_vcb, label = 'vcb',
                         color=colors[kk],linestyle=linestyles[kk], lw=lws[kk])
kk=1
axs.plot(z_e, tau_novcb, label = 'no vcb',
                         color=colors[kk],linestyle=linestyles[kk], lw=lws[kk])
kk=2
axs.plot(z_e, tau_NOMINI, label = 'no MINI',
                         color=colors[kk],linestyle=linestyles[kk],lw=lws[kk])

axs.set_ylim(0., 0.1)
axs.set_xlabel('redshift',fontsize=15)
axs.xaxis.set_tick_params(labelsize=15)

axs.set_xlim(0.,20.)
axs.set_ylabel('$\\tau$',fontsize=15)
axs.yaxis.set_tick_params(labelsize=15)

plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)

tauPmin=0.0561-0.0071
tauPmax=0.0561+0.0071
axs.axhspan(tauPmin, tauPmax, alpha=0.34, color='black')
axs.grid()

#Planck2020: tau=0.0561±0.0071
[ ]:
#check that the tau z=15-30 is below 0.006 as Planck requires
print(z_e[-1],z_e[55])
tau_vcb[-1]-tau_vcb[55]
[ ]:
linestyles = ['-', '-.',':']
colors     = ['black','gray','#377eb8']
lws        = [3,1,2]
labels     = ['vcb', 'no vcb', 'no MINI']

fig, axs = plt.subplots(1, 1, sharex=True, figsize=(8,4))

for kk,lightcone in enumerate([lightcone_fid_vcb,lightcone_fid_novcb,lightcone_fid_NOMINI]):

    axs.plot(lightcone.node_redshifts, lightcone.global_xHI, label = labels[kk],
                         color=colors[kk],linestyle=linestyles[kk], lw=lws[kk])

axs.set_ylim(0., 1.)
axs.set_xlabel('redshift',fontsize=15)
axs.xaxis.set_tick_params(labelsize=15)

axs.set_xlim(5.,20.)
axs.set_ylabel('$x_{HI}$',fontsize=15)
axs.yaxis.set_tick_params(labelsize=15)

plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)

axs.grid()
[ ]:

[ ]:
#choose a redshift to print coeval slices and see if there are VAOs. Usually best then T21~T21min/2
zz=zlist21[40]
print(zz)
[ ]:
#We plot a coeval box, but we compare the vcb case against the vcb=vavg, since the no velocity (vcb=0) case has a background evolution that is too different.
coeval_fid_vcb = p21c.run_coeval(
        redshift = zz,
        init_box = initial_conditions,
        flag_options = flag_options_fid,
        astro_params = astro_params_vcb,
        random_seed = random_seed,
        direc = output_dir,
        write=True#, regenerate=True
)

coeval_fid_vcbavg = p21c.run_coeval(
        redshift = zz,
        init_box = initial_conditions,
        flag_options = flag_options_fid_vavg,
        astro_params = astro_params_vcb,
        random_seed = random_seed,
        direc = output_dir,
        write=True#, regenerate=True
)
[ ]:

[ ]:
T21slice_vcb=coeval_fid_vcb.brightness_temp
T21avg_vcb = np.mean(T21slice_vcb)
dT21slice_vcb = T21slice_vcb - T21avg_vcb

T21slice_novcb=coeval_fid_vcbavg.brightness_temp
T21avg_novcb = np.mean(T21slice_novcb)
dT21slice_novcb = T21slice_novcb - T21avg_novcb



sigma21=np.sqrt(np.var(dT21slice_vcb))

T21maxplot =  3.0*sigma21
T21minplot = -2.0 * sigma21



origin = 'lower'
extend = 'both'

origin = None
extend = 'neither'

xx = np.linspace(0, BOX_LEN, HII_DIM, endpoint=False)
yy = xx



indexv=0

fig, ax = plt.subplots(2, 2, constrained_layout=True, figsize=(10,8),
                       sharex='col', sharey='row',
                        gridspec_kw={'hspace': 0, 'wspace': 0})

cs0=ax[0,0].contourf(xx, yy, dT21slice_novcb[indexv], extend=extend, origin=origin,
                   vmin=T21minplot, vmax=T21maxplot,cmap='bwr')
fig.colorbar(cs0, ax=ax[0,0], shrink=0.9, location='left')
cs1=ax[0,1].contourf(xx, yy, dT21slice_vcb[indexv], extend=extend, origin=origin,
                   vmin=T21minplot, vmax=T21maxplot,cmap='bwr')
fig.colorbar(cs1, ax=ax[0,1], shrink=0.9)



deltaslice=initial_conditions.lowres_density
deltaavg = np.mean(deltaslice)
ddeltaslice = deltaslice - deltaavg

vcbslice=initial_conditions.lowres_vcb
vcbavg = np.mean(vcbslice)
dvcbslice = vcbslice

print(vcbavg)


csd=ax[1,0].contourf(xx, yy, ddeltaslice[indexv])
fig.colorbar(csd, ax=ax[1,0], shrink=0.9, location='left')
csv=ax[1,1].contourf(xx, yy, dvcbslice[indexv])
fig.colorbar(csv, ax=ax[1,1], shrink=0.9, extend=extend)
plt.show()

plt.tight_layout()

[ ]:

[ ]:

[ ]:

[ ]:

[ ]:

[ ]:

[ ]:

[ ]:

[ ]:
global_quantities = ('brightness_temp','Ts_box','xH_box',"dNrec_box",'z_re_box','Gamma12_box','J_21_LW_box',"density")
#choose some to plot...
plot_quantities = ('brightness_temp','Ts_box','xH_box',"dNrec_box",'Gamma12_box','J_21_LW_box')
ymins = [-120, 1e1, 0, 0, 0, 0]
ymaxs = [  30, 1e3, 1, 1, 1,5]
linestyles = ['-', '-',':','-.','-.',':']
colors     = ['gray','black','#e41a1c','#377eb8','#e41a1c','#377eb8']
lws        = [2,2,2,2]

textss   = ['vcb','MCGs']
factorss = [[0, 1],] * len(textss)
labelss  = [['NO', 'reference'],] * len(textss)


fig, axss = plt.subplots(len(plot_quantities), len(labelss),
                         sharex=True, figsize=(4*len(labelss),2*len(plot_quantities)))

for pp, texts in enumerate(textss):
    labels  = labelss[pp]
    factors = factorss[pp]
    axs     = axss[:,pp]
    for kk, label in enumerate(labels):
        factor = factors[kk]


        if kk==0:
            if pp == 0:
                lightcone = lightcone_fid_NOMINI
            else:
                lightcone = lightcone_fid_novcb
        else:
            lightcone = lightcone_fid_vcb

        freqs = 1420.4 / (np.array(lightcone.node_redshifts) + 1.)
        for jj, global_quantity in enumerate(plot_quantities):
            axs[jj].plot(freqs, getattr(lightcone, 'global_%s'%global_quantity.replace('_box','')),
                         color=colors[kk],linestyle=linestyles[kk], label = labels[kk],lw=lws[kk])

    axs[0].text(0.01, 0.99, texts,horizontalalignment='right',verticalalignment='bottom',
                        transform=axs[0].transAxes,fontsize = 15)
    for jj, global_quantity in enumerate(plot_quantities):
        axs[jj].set_ylim(ymins[jj], ymaxs[jj])
    axs[-1].set_xlabel('Frequency/MHz',fontsize=15)
    axs[-1].xaxis.set_tick_params(labelsize=15)

    axs[0].set_xlim(1420.4 / (35 + 1.), 1420.4 / (5.5 + 1.))
    zlabels = np.array([ 6,  7,  8,  10, 13, 18, 25, 35])
    ax2 = axs[0].twiny()
    ax2.set_xlim(axs[0].get_xlim())
    ax2.set_xticks(1420.4 / (zlabels + 1.))
    ax2.set_xticklabels(zlabels.astype(np.str))
    ax2.set_xlabel("redshift",fontsize=15)
    ax2.xaxis.set_tick_params(labelsize=15)
    ax2.grid(False)

    if pp == 0:
        axs[0].legend(loc='lower right', ncol=2,fontsize=13,fancybox=True,frameon=True)
        for jj, global_quantity in enumerate(plot_quantities):
            axs[jj].set_ylabel('global_%s'%global_quantity.replace('_box',''),fontsize=15)
            axs[jj].yaxis.set_tick_params(labelsize=15)
    else:
        for jj, global_quantity in enumerate(plot_quantities):
            axs[jj].set_ylabel('global_%s'%global_quantity.replace('_box',''),fontsize=0)
            axs[jj].yaxis.set_tick_params(labelsize=0)

plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)

# varying parameters

let’s vary paremeters that describe mini-halos and see the impact to the global signal

We keep other parameters fixed and vary one of following by a factor of 1/3 and 3:

F_STAR7_MINI
F_ESC7_MINI
L_X_MINI
A_LW

We also have a NOmini model where mini-halos are not included

[ ]:
#defining those color, linstyle, blabla
linestyles = ['-', '-',':','-.','-.',':']
colors     = ['gray','black','#e41a1c','#377eb8','#e41a1c','#377eb8']
lws        = [1,3,2,2,2,2]

textss   = ['varying '+r'$f_{*,7}^{\rm mol}$',\
            'varying '+r'$f_{\rm esc}^{\rm mol}$',\
            'varying '+r'$L_{\rm x}^{\rm mol}$',\
            'varying '+r'$A_{\rm LW}$']
factorss = [[0, 1, 0.33, 3.0],] * len(textss)
labelss  = [['No Velocity', 'Fiducial', '/3', 'x3'],] * len(textss)
[ ]:
global_quantities = ('brightness_temp','Ts_box','xH_box',"dNrec_box",'z_re_box','Gamma12_box','J_21_LW_box',"density")
#choose some to plot...
plot_quantities = ('brightness_temp','Ts_box','xH_box',"dNrec_box",'Gamma12_box','J_21_LW_box')
ymins = [-120, 1e1, 0, 0, 0, 0]
ymaxs = [  30, 1e3, 1, 1, 1,10]

fig, axss = plt.subplots(len(plot_quantities), len(labelss),
                         sharex=True, figsize=(4*len(labelss),2*len(global_quantities)))

for pp, texts in enumerate(textss):
    labels  = labelss[pp]
    factors = factorss[pp]
    axs     = axss[:,pp]
    for kk, label in enumerate(labels):
        flag_options = flag_options_fid.copy()
        astro_params = astro_params_vcb.copy()
        factor = factors[kk]
        if label == 'No Velocity':
            lightcone = lightcone_fid_novcb
        elif label == 'Fiducial':
            lightcone = lightcone_fid_vcb
        else:
            if pp == 0:
                astro_params.update({'F_STAR7_MINI': astro_params_vcb['F_STAR7_MINI']+np.log10(factor)})
            elif pp == 1:
                astro_params.update({'F_ESC7_MINI': astro_params_vcb['F_ESC7_MINI']+np.log10(factor)})
            elif pp == 2:
                astro_params.update({'L_X_MINI': astro_params_vcb['L_X_MINI']+np.log10(factor)})
            elif pp == 3:
                astro_params.update({'A_LW': astro_params_vcb['A_LW']*factor})
            else:
                print('Make a choice!')

            lightcone = p21c.run_lightcone(
                redshift = ZMIN,
                init_box = initial_conditions,
                flag_options = flag_options_fid,
                astro_params = astro_params,
                global_quantities=global_quantities,
                random_seed = random_seed,
                direc = output_dir
            )



        freqs = 1420.4 / (np.array(lightcone.node_redshifts) + 1.)
        for jj, global_quantity in enumerate(plot_quantities):
            axs[jj].plot(freqs, getattr(lightcone, 'global_%s'%global_quantity.replace('_box','')),
                         color=colors[kk],linestyle=linestyles[kk], label = labels[kk],lw=lws[kk])

    axs[0].text(0.01, 0.99, texts,horizontalalignment='left',verticalalignment='top',
                        transform=axs[0].transAxes,fontsize = 15)
    for jj, global_quantity in enumerate(plot_quantities):
        axs[jj].set_ylim(ymins[jj], ymaxs[jj])
    axs[-1].set_xlabel('Frequency/MHz',fontsize=15)
    axs[-1].xaxis.set_tick_params(labelsize=15)

    axs[0].set_xlim(1420.4 / (35 + 1.), 1420.4 / (5.5 + 1.))
    zlabels = np.array([ 6,  7,  8,  10, 13, 18, 25, 35])
    ax2 = axs[0].twiny()
    ax2.set_xlim(axs[0].get_xlim())
    ax2.set_xticks(1420.4 / (zlabels + 1.))
    ax2.set_xticklabels(zlabels.astype(np.str))
    ax2.set_xlabel("redshift",fontsize=15)
    ax2.xaxis.set_tick_params(labelsize=15)
    ax2.grid(False)

    if pp == 0:
        axs[0].legend(loc='lower right', ncol=2,fontsize=13,fancybox=True,frameon=True)
        for jj, global_quantity in enumerate(plot_quantities):
            axs[jj].set_ylabel('global_%s'%global_quantity.replace('_box',''),fontsize=15)
            axs[jj].yaxis.set_tick_params(labelsize=15)
    else:
        for jj, global_quantity in enumerate(plot_quantities):
            axs[jj].set_ylabel('global_%s'%global_quantity.replace('_box',''),fontsize=0)
            axs[jj].yaxis.set_tick_params(labelsize=0)

plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)
[ ]:

[ ]:
# define functions to calculate PS, following py21cmmc
from powerbox.tools import get_power

def compute_power(
   box,
   length,
   n_psbins,
   log_bins=True,
   ignore_kperp_zero=True,
   ignore_kpar_zero=False,
   ignore_k_zero=False,
):
    # Determine the weighting function required from ignoring k's.
    k_weights = np.ones(box.shape, dtype=np.int)
    n0 = k_weights.shape[0]
    n1 = k_weights.shape[-1]

    if ignore_kperp_zero:
        k_weights[n0 // 2, n0 // 2, :] = 0
    if ignore_kpar_zero:
        k_weights[:, :, n1 // 2] = 0
    if ignore_k_zero:
        k_weights[n0 // 2, n0 // 2, n1 // 2] = 0

    res = get_power(
        box,
        boxlength=length,
        bins=n_psbins,
        bin_ave=False,
        get_variance=False,
        log_bins=log_bins,
        k_weights=k_weights,
    )

    res = list(res)
    k = res[1]
    if log_bins:
        k = np.exp((np.log(k[1:]) + np.log(k[:-1])) / 2)
    else:
        k = (k[1:] + k[:-1]) / 2

    res[1] = k
    return res

def powerspectra(brightness_temp, n_psbins=50, nchunks=10, min_k=0.1, max_k=1.0, logk=True):
    data = []
    chunk_indices = list(range(0,brightness_temp.n_slices,round(brightness_temp.n_slices / nchunks),))

    if len(chunk_indices) > nchunks:
        chunk_indices = chunk_indices[:-1]
    chunk_indices.append(brightness_temp.n_slices)

    for i in range(nchunks):
        start = chunk_indices[i]
        end = chunk_indices[i + 1]
        chunklen = (end - start) * brightness_temp.cell_size

        power, k = compute_power(
            brightness_temp.brightness_temp[:, :, start:end],
            (BOX_LEN, BOX_LEN, chunklen),
            n_psbins,
            log_bins=logk,
        )
        data.append({"k": k, "delta": power * k ** 3 / (2 * np.pi ** 2)})
    return data
[ ]:
# do 5 chunks but only plot 1 - 4, the 0th has no power for minihalo models where xH=0
nchunks = 4
k_fundamental = 2*np.pi/BOX_LEN
k_max = k_fundamental * HII_DIM
Nk=np.floor(HII_DIM/1).astype(int)

fig, axss = plt.subplots(nchunks, len(labelss), sharex=True,sharey=True,figsize=(4*len(labelss),3*(nchunks)),subplot_kw={"xscale":'log', "yscale":'log'})

for pp, texts in enumerate(textss):
    labels  = labelss[pp]
    factors = factorss[pp]
    axs     = axss[:,pp]
    for kk, label in enumerate(labels):
        flag_options = flag_options_fid.copy()
        astro_params = astro_params_vcb.copy()
        factor = factors[kk]
        if label == 'No Velocity':
            lightcone = lightcone_fid_novcb
        elif label == 'Fiducial':
            lightcone = lightcone_fid_vcb
        else:
            if pp == 0:
                astro_params.update({'F_STAR7_MINI': astro_params_vcb['F_STAR7_MINI']+np.log10(factor)})
            elif pp == 1:
                astro_params.update({'F_ESC7_MINI': astro_params_vcb['F_ESC7_MINI']+np.log10(factor)})
            elif pp == 2:
                astro_params.update({'L_X_MINI': astro_params_vcb['L_X_MINI']+np.log10(factor)})
            elif pp == 3:
                astro_params.update({'A_LW': astro_params_vcb['A_LW']+np.log10(factor)})
            else:
                print('Make a choice!')

            lightcone = p21c.run_lightcone(
                redshift = ZMIN,
                init_box = initial_conditions,
                flag_options = flag_options_fid,
                astro_params = astro_params,
                global_quantities=global_quantities,
                random_seed = random_seed,
                direc = output_dir
            )

        PS = powerspectra(lightcone, min_k = k_fundamental, max_k = k_max)

        for ii in range(nchunks):
            axs[ii].plot(PS[ii+1]['k'], PS[ii+1]['delta'], color=colors[kk],linestyle=linestyles[kk], label = labels[kk],lw=lws[kk])

            if pp == len(textss)-1 and kk == 0:
                axs[ii].text(0.99, 0.01, 'Chunk-%02d'%(ii+1),horizontalalignment='right',verticalalignment='bottom',
                        transform=axs[ii].transAxes,fontsize = 15)

    axs[0].text(0.01, 0.99, texts,horizontalalignment='left',verticalalignment='top',
                        transform=axs[0].transAxes,fontsize = 15)

    axs[-1].set_xlabel("$k$ [Mpc$^{-3}$]",fontsize=15)
    axs[-1].xaxis.set_tick_params(labelsize=15)

    if pp == 0:
        for ii in range(nchunks):
            axs[ii].set_ylim(2e-1, 2e2)
            axs[ii].set_ylabel("$k^3 P$", fontsize=15)
            axs[ii].yaxis.set_tick_params(labelsize=15)
    else:
        for ii in range(nchunks-1):
            axs[ii].set_ylim(2e-1, 2e2)
            axs[ii].set_ylabel("$k^3 P$", fontsize=0)
            axs[ii].yaxis.set_tick_params(labelsize=0)

axss[0,0].legend(loc='lower left', ncol=2,fontsize=13,fancybox=True,frameon=True)
plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)

Note that I’ve run these simulations in parallel before this tutorial. With these setup, each took ~6h to finish. Here, running means read the cached outputs.

global properties – optical depth

[ ]:
#defining those color, linstyle, blabla
linestyles = ['-', '-',':','-.','-.',':']
colors     = ['gray','black','#e41a1c','#377eb8','#e41a1c','#377eb8']
lws        = [1,3,2,2,2,2]

textss_tau   = ['varying '+r'$f_{*,7}^{\rm mol}$',\
            'varying '+r'$f_{\rm esc}^{\rm mol}$',\
            'varying '+r'$A_{\rm LW}$']

factorss_tau = [[0, 1, 0.33, 3.0],] * len(textss_tau)
labelss_tau  = [['No Velocity', 'Fiducial', '/3', 'x3'],] * len(textss_tau)
[ ]:
plot_quantities = ['tau_e']
ymins = [0]
ymaxs = [0.2]


fig, axss_tau = plt.subplots(len(plot_quantities), len(labelss_tau),
                         sharex=True, figsize=(4*len(labelss_tau),3*len(plot_quantities)))



for pp, texts in enumerate(textss_tau):
    labels  = labelss_tau[pp]
    factors = factorss_tau[pp]
    axs     = axss_tau[pp]
    for kk, label in enumerate(labels):
        flag_options = flag_options_fid.copy()
        astro_params = astro_params_vcb.copy()
        factor = factors[kk]
        if label == 'No Velocity':
            lightcone = lightcone_fid_novcb
        elif label == 'Fiducial':
            lightcone = lightcone_fid_vcb
        else:
            if pp == 0:
                astro_params.update({'F_STAR7_MINI': astro_params_vcb['F_STAR7_MINI']+np.log10(factor)})
            elif pp == 1:
                astro_params.update({'F_ESC7_MINI': astro_params_vcb['F_ESC7_MINI']+np.log10(factor)})
            elif pp == 2:
                astro_params.update({'A_LW': astro_params_vcb['A_LW']*factor})
            else:
                print('Make a choice!')

            lightcone = p21c.run_lightcone(
                redshift = ZMIN,
                init_box = initial_conditions,
                flag_options = flag_options_fid,
                astro_params = astro_params,
                global_quantities=global_quantities,
                random_seed = random_seed,
                direc = output_dir
            )


        z_e=np.array([]);
        tau_e=np.array([]);
        for i in range(len(lightcone.node_redshifts)-1):
            tauz=p21c.compute_tau(redshifts=lightcone.node_redshifts[-1:-2-i:-1],
                                 global_xHI=lightcone.global_xHI[-1:-2-i:-1])
            tau_e=np.append(tau_e,tauz)
            z_e=np.append(z_e,lightcone.node_redshifts[-2-i])
            #print(i,lightcone.node_redshifts[i],tauz)

        #add lower zs where we manually set xH=1
        zlow=np.linspace(lightcone.node_redshifts[-1]-0.1, 0.1, 14)
        for zl in zlow:
            tauz=p21c.compute_tau(redshifts=np.array([zl]), global_xHI=np.array([lightcone.global_xHI[-1]]))
            tau_e=np.append([tauz],tau_e)
            z_e=np.append([zl],z_e)


#        freqs = 1420.4 / (np.array(lightcone.node_redshifts) + 1.)
        for jj, global_quantity in enumerate(plot_quantities):
            axs.plot(z_e, tau_e,
                         color=colors[kk],linestyle=linestyles[kk], label = labels[kk],lw=lws[kk])

    #print(z_e,tau_e)


    axs.text(0.01, 0.99, texts,horizontalalignment='left',verticalalignment='top',
                        transform=axs.transAxes,fontsize = 15)
    axs.set_ylim(ymins[0], ymaxs[0])
    axs.set_xlabel('redshift',fontsize=15)
    axs.xaxis.set_tick_params(labelsize=15)

    axs.set_xlim(0.,20.)

    if pp == 0:
        for ii in range(nchunks):
            axs.set_ylabel('$\\tau$',fontsize=15)
            axs.yaxis.set_tick_params(labelsize=15)
    else:
        for ii in range(nchunks-1):
            axs.yaxis.set_tick_params(labelsize=0)

plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)


[ ]:

[ ]:

21-cm power spectra

[ ]:
# do 5 chunks but only plot 1 - 4, the 0th has no power for minihalo models where xH=0
nchunks = 4

fig, axss = plt.subplots(nchunks, len(labelss), sharex=True,sharey=True,figsize=(4*len(labelss),3*(nchunks)),subplot_kw={"xscale":'log', "yscale":'log'})

for pp, texts in enumerate(textss):
    labels  = labelss[pp]
    factors = factorss[pp]
    axs     = axss[:,pp]
    for kk, label in enumerate(labels):
        factor = factors[kk]

        if kk==0:
            lightcone = lightcone_fid_vcbavg
        else:
            lightcone = lightcone_fid_vcb

        PS = powerspectra(lightcone, min_k = k_fundamental, max_k = k_max)
        for ii in range(nchunks):
            axs[ii].plot(PS[ii+1]['k'], PS[ii+1]['delta'], color=colors[kk],linestyle=linestyles[kk], label = labels[kk],lw=lws[kk])

            if pp == len(textss)-1 and kk == 0:
                axs[ii].text(0.99, 0.01, 'Chunk-%02d'%(ii+1),horizontalalignment='right',verticalalignment='bottom',
                        transform=axs[ii].transAxes,fontsize = 15)

    axs[0].text(0.01, 0.99, texts,horizontalalignment='left',verticalalignment='top',
                        transform=axs[0].transAxes,fontsize = 15)

    axs[-1].set_xlabel("$k$ [Mpc$^{-3}$]",fontsize=15)
    axs[-1].xaxis.set_tick_params(labelsize=15)

    if pp == 0:
        for ii in range(nchunks):
            axs[ii].set_ylim(2e-1, 2e2)
            axs[ii].set_ylabel("$k^3 P$", fontsize=15)
            axs[ii].yaxis.set_tick_params(labelsize=15)
    else:
        for ii in range(nchunks-1):
            axs[ii].set_ylim(2e-1, 2e2)
            axs[ii].set_ylabel("$k^3 P$", fontsize=0)
            axs[ii].yaxis.set_tick_params(labelsize=0)

axss[0,0].legend(loc='lower left', ncol=2,fontsize=13,fancybox=True,frameon=True)
plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)
[ ]:
nchunks=5

textss   = ['vcb','vcb']
factorss = [[0, 1],] * len(textss)
labelss  = [['Regular', 'Avg'],] * len(textss)

k_fundamental = 2*np.pi/BOX_LEN
k_max = k_fundamental * HII_DIM
Nk=np.floor(HII_DIM/1).astype(int)

PSv= powerspectra(lightcone_fid_vcb, min_k = k_fundamental, max_k = k_max)
PSvavg= powerspectra(lightcone_fid_vcbavg, min_k = k_fundamental, max_k = k_max)
[ ]:
klist= PSv[0]['k']
P21diff = [(PSv[i]['delta']-PSvavg[i]['delta'])/PSvavg[i]['delta'] for i in range(nchunks)]

import matplotlib.pyplot as plt


fig, axss = plt.subplots(nchunks, 1, sharex=True,sharey=True,figsize=(2*len(labelss),3*(nchunks)),subplot_kw={"xscale":'linear', "yscale":'linear'})

for ii in range(nchunks):
    axss[ii].plot(klist, P21diff[ii])

plt.xscale('log')
axss[0].legend(loc='lower left', ncol=2,fontsize=13,fancybox=True,frameon=True)
plt.tight_layout()
fig.subplots_adjust(hspace = 0.0,wspace=0.0)
[ ]:
