# Running and Plotting Coeval Cubes¶

The aim of this tutorial is to introduce you to how 21cmFAST does the most basic operations: producing single coeval cubes, and visually verifying them. It is a great place to get started with 21cmFAST.

[1]:

%matplotlib inline
import matplotlib.pyplot as plt
import os
# We change the default level of the logger so that
# we can see what's happening with caching.
import logging, sys, os
logger = logging.getLogger('21cmFAST')
logger.setLevel(logging.INFO)

import py21cmfast as p21c

# For plotting the cubes, we use the plotting submodule:
from py21cmfast import plotting

# For interacting with the cache
from py21cmfast import cache_tools

[2]:

print(f"Using 21cmFAST version {p21c.__version__}")

Using 21cmFAST version 3.0.2


Clear the cache so that we get the same results for the notebook every time (don’t worry about this for now). Also, set the default output directory to _cache/:

[3]:

if not os.path.exists('_cache'):
os.mkdir('_cache')

p21c.config['direc'] = '_cache'
cache_tools.clear_cache(direc="_cache")

2020-10-02 09:51:10,651 | INFO | Removed 0 files from cache.


## Basic Usage¶

The simplest (and typically most efficient) way to produce a coeval cube is simply to use the run_coeval method. This consistently performs all steps of the calculation, re-using any data that it can without re-computation or increased memory overhead.

[4]:

coeval8, coeval9, coeval10 = p21c.run_coeval(
redshift = [8.0, 9.0, 10.0],
user_params = {"HII_DIM": 100, "BOX_LEN": 100, "USE_INTERPOLATION_TABLES": True},
cosmo_params = p21c.CosmoParams(SIGMA_8=0.8),
astro_params = p21c.AstroParams({"HII_EFF_FACTOR":20.0}),
random_seed=12345
)


There are a number of possible inputs for run_coeval, which you can check out either in the API reference or by calling help(p21c.run_coeval). Notably, the redshift must be given: it can be a single number, or a list of numbers, defining the redshift at which the output coeval cubes will be defined.

Other params we’ve given here are user_params, cosmo_params and astro_params. These are all used for defining input parameters into the backend C code (there’s also another possible input of this kind; flag_options). These can be given either as a dictionary (as user_params has been), or directly as a relevant object (like cosmo_params and astro_params). If creating the object directly, the parameters can be passed individually or via a single dictionary. So there’s a lot of flexibility there! Nevertheless we encourage you to use the basic dictionary. The other ways of passing the information are there so we can use pre-defined objects later on. For more information about these “input structs”, see the API docs.

We’ve also given a direc option: this is the directory in which to search for cached data (and also where cached data should be written). Throughout this notebook we’re going to set this directly to the _cache folder, which allows us to manage it directly. By default, the cache location is set in the global configuration in ~/.21cmfast/config.yml. You’ll learn more about caching further on in this tutorial.

Finally, we’ve given a random seed. This sets all the random phases for the simulation, and ensures that we can exactly reproduce the same results on every run.

The output of run_coeval is a list of Coeval instances, one for each input redshift (it’s just a single object if a single redshift was passed, not a list). They store everything related to that simulation, so that it can be completely compared to other simulations.

For example, the input parameters:

[5]:

print("Random Seed: ", coeval8.random_seed)
print("Redshift: ", coeval8.redshift)
print(coeval8.user_params)

Random Seed:  12345
Redshift:  8.0
UserParams(BOX_LEN:100, DIM:300, HII_DIM:100, HMF:1, POWER_SPECTRUM:0, USE_FFTW_WISDOM:False, USE_RELATIVE_VELOCITIES:False)


This is where the utility of being able to pass a class instance for the parameters arises: we could run another iteration of coeval cubes, with the same user parameters, simply by doing p21c.run_coeval(user_params=coeval8.user_params, ...).

Also in the Coeval instance are the various outputs from the different steps of the computation. You’ll see more about what these steps are further on in the tutorial. But for now, we show that various boxes are available:

[6]:

print(coeval8.hires_density.shape)
print(coeval8.brightness_temp.shape)

(300, 300, 300)
(100, 100, 100)


Along with these, full instances of the output from each step are available as attributes that end with “struct”. These instances themselves contain the numpy arrays of the data cubes, and some other attributes that make them easier to work with:

[7]:

coeval8.brightness_temp_struct.global_Tb

[7]:

17.622644


By default, each of the components of the cube are cached to disk (in our _cache/ folder) as we run it. However, the Coeval cube itself is not written to disk by default. Writing it to disk incurs some redundancy, since that data probably already exists in the cache directory in seperate files.

Let’s save to disk. The save method by default writes in the current directory (not the cache!):

[8]:

filename = coeval8.save(direc='_cache')


The filename of the saved file is returned:

[9]:

print(os.path.basename(filename))

Coeval_z8.0_a3c7dea665420ae9c872ba2fab1b3d7d_r12345.h5


Such files can be read in:

[10]:

new_coeval8 = p21c.Coeval.read(filename, direc='.')

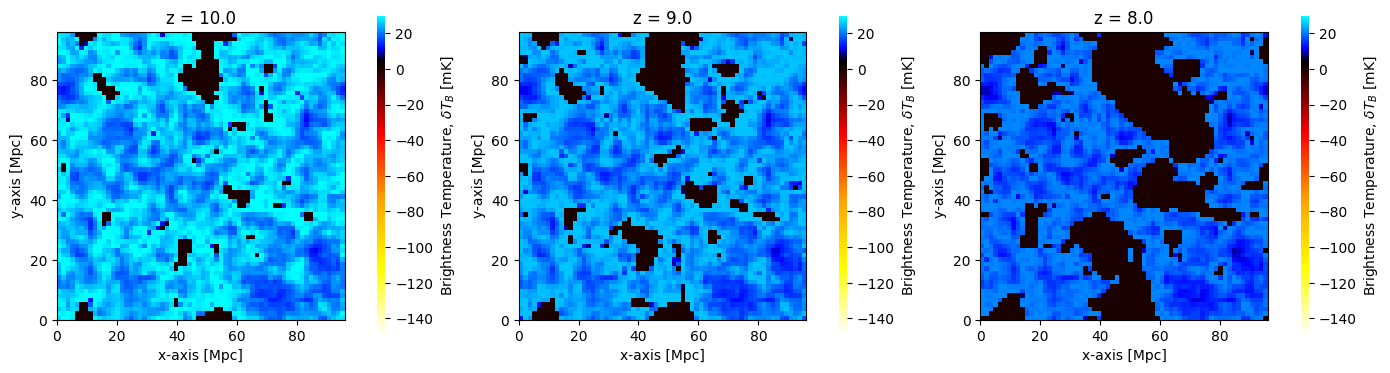

Some convenient plotting functions exist in the plotting module. These can work directly on Coeval objects, or any of the output structs (as we’ll see further on in the tutorial). By default the coeval_sliceplot function will plot the brightness_temp, using the standard traditional colormap:

[11]:

fig, ax = plt.subplots(1,3, figsize=(14,4))
for i, (coeval, redshift) in enumerate(zip([coeval8, coeval9, coeval10], [8,9,10])):
plotting.coeval_sliceplot(coeval, ax=ax[i], fig=fig);
plt.title("z = %s"%redshift)
plt.tight_layout()

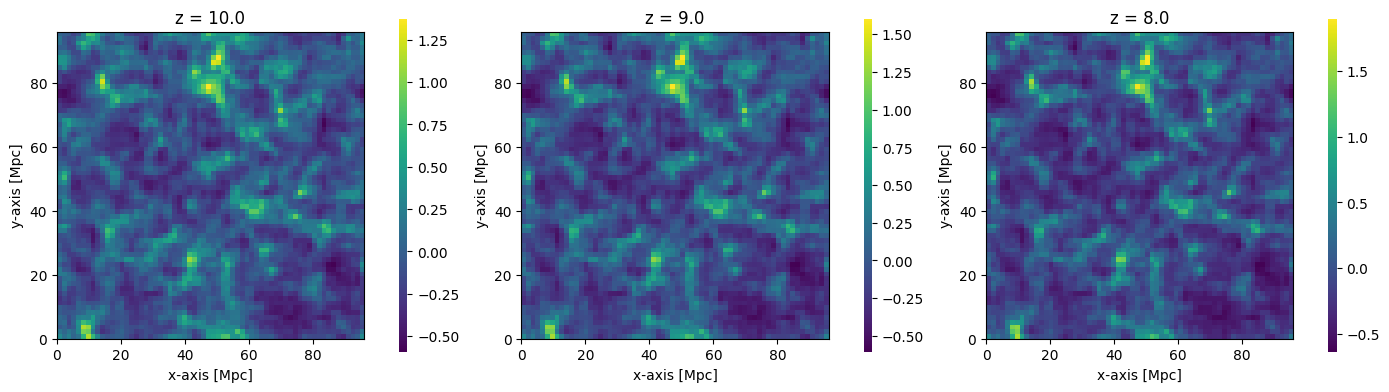

Any 3D field can be plotted, by setting the kind argument. For example, we could alternatively have plotted the dark matter density cubes perturbed to each redshift:

[12]:

fig, ax = plt.subplots(1,3, figsize=(14,4))
for i, (coeval, redshift) in enumerate(zip([coeval8, coeval9, coeval10], [8,9,10])):
plotting.coeval_sliceplot(coeval, kind='density', ax=ax[i], fig=fig);
plt.title("z = %s"%redshift)
plt.tight_layout()


To see more options for the plotting routines, see the API Documentation.

Coeval instances are not cached themselves – they are containers for data that is itself cached (i.e. each of the _struct attributes of Coeval). See the api docs for more detailed information on these.

You can see the filename of each of these structs (or the filename it would have if it were cached – you can opt to not write out any given dataset):

[13]:

coeval8.init_struct.filename

[13]:

'InitialConditions_6f0eb48c62c36acef23416d5d0fbcf3b_r12345.h5'


You can also write the struct anywhere you’d like on the filesystem. This will not be able to be automatically used as a cache, but it could be useful for sharing files with colleagues.

[14]:

coeval8.init_struct.save(fname='my_init_struct.h5')


This brief example covers most of the basic usage of 21cmFAST (at least with Coeval objects – there are also Lightcone objects for which there is a separate tutorial).

For the rest of the tutorial, we’ll cover a more advanced usage, in which each step of the calculation is done independently.

Most users most of the time will want to use the high-level run_coeval function from the previous section. However, there are several independent steps when computing the brightness temperature field, and these can be performed one-by-one, adding any other effects between them if desired. This means that the new 21cmFAST is much more flexible. In this section, we’ll go through in more detail how to use the lower-level methods.

Each step in the chain will receive a number of input-parameter classes which define how the calculation should run. These are the user_params, cosmo_params, astro_params and flag_options that we saw in the previous section.

Conversely, each step is performed by running a function which will return a single object. Every major function returns an object of the same fundamental class (an OutputStruct) which has various methods for reading/writing the data, and ensuring that it’s in the right state to receive/pass to and from C. These are the objects stored as init_box_struct etc. in the Coeval class.

As we move through each step, we’ll outline some extra details, hints and tips about using these inputs and outputs.

### Initial Conditions¶

The first step is to get the initial conditions, which defines the cosmological density field before any redshift evolution is applied.

[15]:

initial_conditions = p21c.initial_conditions(
user_params = {"HII_DIM": 100, "BOX_LEN": 100},
cosmo_params = p21c.CosmoParams(SIGMA_8=0.8),
random_seed=54321
)


We’ve already come across all these parameters as inputs to the run_coeval function. Indeed, most of the steps have very similar interfaces, and are able to take a random seed and parameters for where to look for the cache. We use a different seed than in the previous section so that all our boxes are “fresh” (we’ll show how the caching works in a later section).

These initial conditions have 100 cells per side, and a box length of 100 Mpc. Note again that they can either be passed as a dictionary containing the input parameters, or an actual instance of the class. While the former is the suggested way, one benefit of the latter is that it can be queried for the relevant parameters (by using help or a post-fixed ?), or even queried for defaults:

[16]:

p21c.CosmoParams._defaults_

[16]:

{'SIGMA_8': 0.8102,
'hlittle': 0.6766,
'OMm': 0.30964144154550644,
'OMb': 0.04897468161869667,
'POWER_INDEX': 0.9665}


(these defaults correspond to the Planck15 cosmology contained in Astropy).

So what is in the initial_conditions object? It is what we call an OutputStruct, and we have seen it before, as the init_box_struct attribute of Coeval. It contains a number of arrays specifying the density and velocity fields of our initial conditions, as well as the defining parameters. For example, we can easily show the cosmology parameters that are used (note the non-default $$\sigma_8$$ that we passed):

[17]:

initial_conditions.cosmo_params

[17]:

CosmoParams(OMb:0.04897468161869667, OMm:0.30964144154550644, POWER_INDEX:0.9665, SIGMA_8:0.8, hlittle:0.6766)


A handy tip is that the CosmoParams class also has a reference to a corresponding Astropy cosmology, which can be used more broadly:

[18]:

initial_conditions.cosmo_params.cosmo

[18]:

FlatLambdaCDM(name="Planck15", H0=67.7 km / (Mpc s), Om0=0.31, Tcmb0=2.725 K, Neff=3.05, m_nu=[0.   0.   0.06] eV, Ob0=0.049)


Merely printing the initial conditions object gives a useful representation of its dependent parameters:

[19]:

print(initial_conditions)

InitialConditions(UserParams(BOX_LEN:100, DIM:300, HII_DIM:100, HMF:1, POWER_SPECTRUM:0, USE_FFTW_WISDOM:False, USE_RELATIVE_VELOCITIES:False);
CosmoParams(OMb:0.04897468161869667, OMm:0.30964144154550644, POWER_INDEX:0.9665, SIGMA_8:0.8, hlittle:0.6766);
random_seed:54321)


(side-note: the string representation of the object is used to uniquely define it in order to save it to the cache… which we’ll explore soon!).

To see which arrays are defined in the object, access the fieldnames (this is true for all OutputStruct objects):

[20]:

initial_conditions.fieldnames

[20]:

['lowres_density',
'lowres_vx',
'lowres_vy',
'lowres_vz',
'lowres_vx_2LPT',
'lowres_vy_2LPT',
'lowres_vz_2LPT',
'hires_density',
'lowres_vcb',
'hires_vcb']


The coeval_sliceplot function also works on OutputStruct objects (as well as the Coeval object as we’ve already seen). It takes the object, and a specific field name. By default, the field it plots is the first field in fieldnames (for any OutputStruct).

[21]:

plotting.coeval_sliceplot(initial_conditions, "hires_density");


### Perturbed Field¶

After obtaining the initial conditions, we need to perturb the field to a given redshift (i.e. the redshift we care about). This step clearly requires the results of the previous step, which we can easily just pass in. Let’s do that:

[22]:

perturbed_field = p21c.perturb_field(
redshift = 8.0,
init_boxes = initial_conditions
)


Note that we didn’t need to pass in any input parameters, because they are all contained in the initial_conditions object itself. The random seed is also taken from this object.

Again, the output is an OutputStruct, so we can view its fields:

[23]:

perturbed_field.fieldnames

[23]:

['density', 'velocity']


This time, it has only density and velocity (the velocity direction is chosen without loss of generality). Let’s view the perturbed density field:

[24]:

plotting.coeval_sliceplot(perturbed_field, "density");


It is clear here that the density used is the low-res density, but the overall structure of the field looks very similar.

### Ionization Field¶

Next, we need to ionize the box. This is where things get a little more tricky. In the simplest case (which, let’s be clear, is what we’re going to do here) the ionization occurs at the saturated limit, which means we can safely ignore the contribution of the spin temperature. This means we can directly calculate the ionization on the density/velocity fields that we already have. A few more parameters are needed here, and so two more “input parameter dictionaries” are available, astro_params and flag_options. Again, a reminder that their parameters can be viewed by using eg. help(p21c.AstroParams), or by looking at the API docs.

For now, let’s leave everything as default. In that case, we can just do:

[25]:

ionized_field = p21c.ionize_box(
perturbed_field = perturbed_field
)

2020-02-29 15:10:43,902 | INFO | Existing init_boxes found and read in (seed=54321).


That was easy! All the information required by ionize_box was given directly by the perturbed_field object. If we had also passed a redshift explicitly, this redshift would be checked against that from the perturbed_field and an error raised if they were incompatible:

Let’s see the fieldnames:

[26]:

ionized_field.fieldnames

[26]:

['first_box', 'xH_box', 'Gamma12_box', 'z_re_box', 'dNrec_box']


Here the first_box field is actually just a flag to tell the C code whether this has been evolved or not. Here, it hasn’t been, it’s the “first box” of an evolutionary chain. Let’s plot the neutral fraction:

[27]:

plotting.coeval_sliceplot(ionized_field, "xH_box");


### Brightness Temperature¶

Now we can use what we have to get the brightness temperature:

[28]:

brightness_temp = p21c.brightness_temperature(ionized_box=ionized_field, perturbed_field=perturbed_field)


This has only a single field, brightness_temp:

[29]:

plotting.coeval_sliceplot(brightness_temp);


### The Problem¶

And there you have it – you’ve computed each of the four steps (there’s actually another, spin_temperature, that you require if you don’t assume the saturated limit) individually.

However, some problems quickly arise. What if you want the perturb_field, but don’t care about the initial conditions? We know how to get the full Coeval object in one go, but it would seem that the sub-boxes have to each be computed as the input to the next.

A perhaps more interesting problem is that some quantities require evolution: i.e. a whole bunch of simulations at a string of redshifts must be performed in order to obtain the current redshift. This is true when not in the saturated limit, for example. That means you’d have to manually compute each redshift in turn, and pass it to the computation at the next redshift. While this is definitely possible, it becomes difficult to set up manually when all you care about is the box at the final redshift.

py21cmfast solves this by making each of the functions recursive: if perturb_field is not passed the init_boxes that it needs, it will go and compute them, based on the parameters that you’ve passed it. If the previous spin_temp box required for the current redshift is not passed – it will be computed (and if it doesn’t have a previous spin_temp it will be computed, and so on).

That’s all good, but what if you now want to compute another perturb_field, with the same fundamental parameters (but at a different redshift)? Since you didn’t ever see the init_boxes, they’ll have to be computed all over again. That’s where the automatic caching comes in, which is where we turn now…

## Using the Automatic Cache¶

To solve all this, 21cmFAST uses an on-disk caching mechanism, where all boxes are saved in HDF5 format in a default location. The cache allows for reading in previously-calculated boxes automatically if they match the parameters that are input. The functions used at every step (in the previous section) will try to use a cached box instead of calculating a new one, unless its explicitly asked not to.

Thus, we could do this:

[30]:

perturbed_field = p21c.perturb_field(
redshift = 8.0,
user_params = {"HII_DIM": 100, "BOX_LEN": 100},
cosmo_params = p21c.CosmoParams(SIGMA_8=0.8),
)
plotting.coeval_sliceplot(perturbed_field, "density");

2020-02-29 15:10:45,367 | INFO | Existing z=8.0 perturb_field boxes found and read in (seed=12345).


Note that here we pass exactly the same parameters as were used in the previous section. It gives a message that the full box was found in the cache and immediately returns. However, if we change the redshift:

[31]:

perturbed_field = p21c.perturb_field(
redshift = 7.0,
user_params = {"HII_DIM": 100, "BOX_LEN": 100},
cosmo_params = p21c.CosmoParams(SIGMA_8=0.8),
)
plotting.coeval_sliceplot(perturbed_field, "density");

2020-02-29 15:10:45,748 | INFO | Existing init_boxes found and read in (seed=12345).


Now it finds the initial conditions, but it must compute the perturbed field at the new redshift. If we had changed the initial parameters as well, it would have to calculate everything:

[32]:

perturbed_field = p21c.perturb_field(
redshift = 8.0,
user_params = {"HII_DIM": 50, "BOX_LEN": 100},
cosmo_params = p21c.CosmoParams(SIGMA_8=0.8),
)

plotting.coeval_sliceplot(perturbed_field, "density");


This shows that we don’t need to perform the previous step to do any of the steps, they will be calculated automatically.

Now, let’s get an ionized box, but this time we won’t assume the saturated limit, so we need to use the spin temperature. We can do this directly in the ionize_box function, but let’s do it explicitly. We will use the auto-generation of the initial conditions and perturbed field. However, the spin temperature is an evolved field, i.e. to compute the field at $$z$$, we need to know the field at $$z+\Delta z$$. This continues up to some redshift, labelled z_heat_max, above which the spin temperature can be defined directly from the perturbed field.

Thus, one option is to pass to the function a previous spin temperature box, to evolve to this redshift. However, we don’t have a previous spin temperature box yet. Of course, the function itself will go and calculate that box if it’s not given (or read it from cache if it’s been calculated before!). When it tries to do that, it will go to the one before, and so on until it reaches z_heat_max, at which point it will calculate it directly.

To facilitate this recursive progression up the redshift ladder, there is a parameter, z_step_factor, which is a multiplicate factor that determines the previous redshift at each step.

We can also pass the dependent boxes explicitly, which provides the parameters necessary.

WARNING: THIS IS THE MOST TIME-CONSUMING STEP OF THE CALCULATION!

[34]:

spin_temp = p21c.spin_temperature(
perturbed_field = perturbed_field,
zprime_step_factor=1.05,
)

2020-02-29 15:11:38,347 | INFO | Existing init_boxes found and read in (seed=521414794440).

[35]:

plotting.coeval_sliceplot(spin_temp, "Ts_box");


Let’s note here that each of the functions accepts a few of the same arguments that modifies how the boxes are cached. There is a write argument, which if set to False, will disable writing that box to cache (and it is passed through the recursive heirarchy). There is also regenerate, which if True, forces this box and all its predecessors to be re-calculated even if they exist in the cache. Then there is direc, which we have seen before.

Finally note that by default, random_seed is set to None. If this is the case, then any cached dataset matching all other parameters will be read in, and the random_seed will be set based on the file read in. If it is set to an integer number, then the cached dataset must also match the seed. If it is None, and no matching dataset is found, a random seed will be autogenerated.

Now if we calculate the ionized box, ensuring that it uses the spin temperature, then it will also need to be evolved. However, due to the fact that we cached each of the spin temperature steps, these should be read in accordingly:

[36]:

ionized_box = p21c.ionize_box(
spin_temp = spin_temp,
zprime_step_factor=1.05,
)

2020-02-29 15:12:55,794 | INFO | Existing init_boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,814 | INFO | Existing z=34.2811622461279 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,827 | INFO | Existing z=34.2811622461279 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,865 | INFO | Existing z=32.60110690107419 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,880 | INFO | Existing z=32.60110690107419 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,906 | INFO | Existing z=31.00105419149923 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,919 | INFO | Existing z=31.00105419149923 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,948 | INFO | Existing z=29.4771944680945 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,963 | INFO | Existing z=29.4771944680945 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:55,991 | INFO | Existing z=28.02589949342333 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,005 | INFO | Existing z=28.02589949342333 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,033 | INFO | Existing z=26.643713803260315 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,051 | INFO | Existing z=26.643713803260315 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,079 | INFO | Existing z=25.32734647929554 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,094 | INFO | Existing z=25.32734647929554 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,127 | INFO | Existing z=24.073663313614798 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,141 | INFO | Existing z=24.073663313614798 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,168 | INFO | Existing z=22.879679346299806 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,182 | INFO | Existing z=22.879679346299806 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,205 | INFO | Existing z=21.742551758380767 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,219 | INFO | Existing z=21.742551758380767 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,403 | INFO | Existing z=20.659573103219778 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,418 | INFO | Existing z=20.659573103219778 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,620 | INFO | Existing z=19.62816486020931 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,635 | INFO | Existing z=19.62816486020931 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,784 | INFO | Existing z=18.645871295437438 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,793 | INFO | Existing z=18.645871295437438 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,931 | INFO | Existing z=17.71035361470232 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:56,941 | INFO | Existing z=17.71035361470232 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,085 | INFO | Existing z=16.81938439495459 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,095 | INFO | Existing z=16.81938439495459 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,243 | INFO | Existing z=15.970842280909132 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,254 | INFO | Existing z=15.970842280909132 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,399 | INFO | Existing z=15.162706934199171 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,408 | INFO | Existing z=15.162706934199171 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,544 | INFO | Existing z=14.393054223046828 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,554 | INFO | Existing z=14.393054223046828 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,691 | INFO | Existing z=13.66005164099698 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,700 | INFO | Existing z=13.66005164099698 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,832 | INFO | Existing z=12.961953943806646 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,840 | INFO | Existing z=12.961953943806646 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,970 | INFO | Existing z=12.297098994101567 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:57,978 | INFO | Existing z=12.297098994101567 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,106 | INFO | Existing z=11.663903803906255 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,114 | INFO | Existing z=11.663903803906255 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,244 | INFO | Existing z=11.060860765625003 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,254 | INFO | Existing z=11.060860765625003 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,394 | INFO | Existing z=10.486534062500002 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,402 | INFO | Existing z=10.486534062500002 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,529 | INFO | Existing z=9.939556250000003 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,538 | INFO | Existing z=9.939556250000003 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,674 | INFO | Existing z=9.418625000000002 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,682 | INFO | Existing z=9.418625000000002 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,810 | INFO | Existing z=8.922500000000001 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,819 | INFO | Existing z=8.922500000000001 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,947 | INFO | Existing z=8.450000000000001 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:12:58,956 | INFO | Existing z=8.450000000000001 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:12:59,086 | INFO | Existing z=8.0 perturb_field boxes found and read in (seed=521414794440).

[37]:

 plotting.coeval_sliceplot(ionized_box, "xH_box");


Great! So again, we can just get the brightness temp:

[38]:

brightness_temp = p21c.brightness_temperature(
ionized_box = ionized_box,
perturbed_field = perturbed_field,
spin_temp = spin_temp
)


Now lets plot our brightness temperature, which has been evolved from high redshift with spin temperature fluctuations:

[39]:

plotting.coeval_sliceplot(brightness_temp);


We can also check what the result would have been if we had limited the maximum redshift of heating. Note that this recalculates all previous spin temperature and ionized boxes, because they depend on both z_heat_max and zprime_step_factor.

[40]:

ionized_box = p21c.ionize_box(
spin_temp = spin_temp,
zprime_step_factor=1.05,
z_heat_max = 20.0
)

brightness_temp = p21c.brightness_temperature(
ionized_box = ionized_box,
perturbed_field = perturbed_field,
spin_temp = spin_temp
)

plotting.coeval_sliceplot(brightness_temp);

2020-02-29 15:13:08,824 | INFO | Existing init_boxes found and read in (seed=521414794440).
2020-02-29 15:13:08,840 | INFO | Existing z=19.62816486020931 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:11,438 | INFO | Existing z=18.645871295437438 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:11,447 | INFO | Existing z=19.62816486020931 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:14,041 | INFO | Existing z=17.71035361470232 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:14,050 | INFO | Existing z=18.645871295437438 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:16,667 | INFO | Existing z=16.81938439495459 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:16,675 | INFO | Existing z=17.71035361470232 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:19,213 | INFO | Existing z=15.970842280909132 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:19,222 | INFO | Existing z=16.81938439495459 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:21,756 | INFO | Existing z=15.162706934199171 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:21,764 | INFO | Existing z=15.970842280909132 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:24,409 | INFO | Existing z=14.393054223046828 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:24,417 | INFO | Existing z=15.162706934199171 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:26,938 | INFO | Existing z=13.66005164099698 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:26,947 | INFO | Existing z=14.393054223046828 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:29,504 | INFO | Existing z=12.961953943806646 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:29,517 | INFO | Existing z=13.66005164099698 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:32,163 | INFO | Existing z=12.297098994101567 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:32,171 | INFO | Existing z=12.961953943806646 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:34,704 | INFO | Existing z=11.663903803906255 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:34,712 | INFO | Existing z=12.297098994101567 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:37,257 | INFO | Existing z=11.060860765625003 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:37,266 | INFO | Existing z=11.663903803906255 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:39,809 | INFO | Existing z=10.486534062500002 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:39,817 | INFO | Existing z=11.060860765625003 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:42,378 | INFO | Existing z=9.939556250000003 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:42,387 | INFO | Existing z=10.486534062500002 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:44,941 | INFO | Existing z=9.418625000000002 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:44,950 | INFO | Existing z=9.939556250000003 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:47,518 | INFO | Existing z=8.922500000000001 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:47,528 | INFO | Existing z=9.418625000000002 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:50,077 | INFO | Existing z=8.450000000000001 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:50,086 | INFO | Existing z=8.922500000000001 spin_temp boxes found and read in (seed=521414794440).
2020-02-29 15:13:52,626 | INFO | Existing z=8.0 perturb_field boxes found and read in (seed=521414794440).
2020-02-29 15:13:52,762 | INFO | Existing brightness_temp box found and read in (seed=521414794440).


As we can see, it’s very similar!
